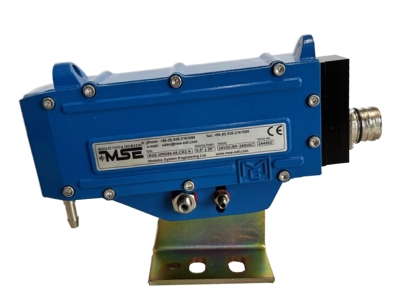

MSE-FMD94 Low
Temperature
Digital Fiber Hot Metal Detector
- Programmable 160°C to 460°C IR Threshold Trip Level for Steel and 200°C to 500° IR Threshold Trip Trip Level for Aluminum
- Fully Digital "All-in-One" Design
- LED Bar Display of % IR Input Signal
- Operates from 24 VDC Supply (Standard)
- Optional Supply Input: Universal 80-240VAC & 24 VDC in the same Sensor
- Remote Optic Head with Rectangular Lens Options: 0.5° x 25°, 0.5° x 15°, and 0.5° x 5° F.O.V. Slit Rectangular Lens
- Remote Optic Head with Lens Option: 1°, 7° F.O.V. Spot Lens
- High Temperature Remote Lens Ratings of 180°C, 600°C and 100°C.
- Programmable Response Times from 1ms to 250ms
- Control Relay with SPNO Contact
- Optional additional Fast Reed Relay Output with SPNO Contact
- NPN and PNP Transistor Outputs
- Remote Self-test Facility
- Robust Stainless Steel Remote Optic Head with 1°, 7° F.O.V. Spot Lens, with Robust Stainless Steel Lens mount with air purging, rated 600°C .
- Robust Remote Optic Head with Rectangular Lens Options, rated 150°C with water/vortex air cooling and separate air purging connection, or optional unique combined air purge and air cooling facility.
- Robust Stainless Steel Remote Spot 1° Quartz Lens option, rated 1000°C with Extreme Robust Stainless Steel Lens mount with air purging.
Typical Applications
- Detection of Hot Aluminum, Hot copper, or Hot Brass in a Rod Mill,
Bar Mall, Rolling Mill, Plate Mill, Roughing Mill, Reversing Mill, Hot
Strip Mill, other Steel Mill or other Mill Applications where the
temperature of the Hot Metal is generally below 800°C and Industrial
Applications requiring detection of hot metal or hot product at lower
temperatures.
|
|
|

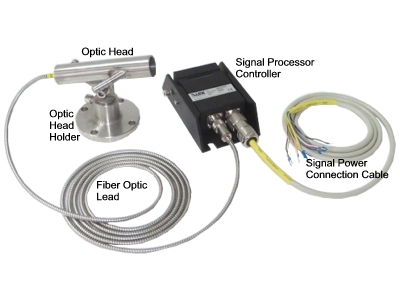

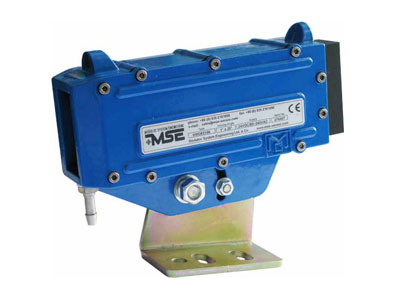

MSE-FMD95 Digital
Hot Metal Detector
- Programmable 270°C to 1000°C IR Threshold Trip Level
- Fully Digital Non-Contact Design
- LED Bar Display of % IR Input Signal
- Operates from 24 VDC Supply (Standard)
- Optional Supply Input: Universal 80-240VAC & 24 VDC in the same Sensor
- Remote Optic Head with Rectangular Lens Options: 0.5° x 25°, 0.5° x 15°, and 0.5° x 5° F.O.V. Slit Rectangular Lens
- Remote Optic Head with Lens Option: 1°, 7° F.O.V. Spot Lens
- High Temperature Remote Lens Ratings of 180°C, 600°C and 100°C.
- Programmable Response Times from 1ms to 250ms
- Control Relay with SPNO Contact
- Optional additional Fast Reed Relay Output with SPNO Contact
- NPN and PNP Transistor Outputs
- Remote Self-test Facility
- Robust Stainless Steel Remote Optic Head with 1°, 7° F.O.V. Spot Lens, with Robust Stainless Steel Lens mount with air purging, rated 600°C .
- Robust Remote Optic Head with Rectangular Lens Options, rated 150°C with water/vortex air cooling and separate air purging connection, or optional unique combined air purge and air cooling facility.
- Robust Stainless Steel Remote Spot 1° Quartz Lens option, rated 1000°C with Extreme Robust Stainless Steel Lens mount with air purging.
Typical Applications
- Detection of Hot Metal or Hot Product in a Rod Mill, Bar Mall, Rolling
Mill, Plate Mill, Roughing Mill, Reversing Mill, Hot
Strip Mill or other Steel Mill Applications and Industrial Applications
requiring detection of hot metal or hot product.
|
|
|

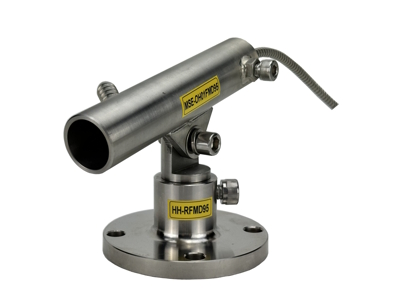

MSE-OH.01.X Remote
Optic Head with
Spot Lenses and Optic Head
Holder
- Engineered for mounting in high
ambient temperatures and very close
to the product line.
- Can be used in areas where with
heavy steam or water is present.
- Lens Options : 1° and 7° F.O.V. Spot Lens
- Brass Lens Housing rated IP66
- Quartz Glass Optic Lens with IR
Filter.
- Robust Stainless Steel
Optic Head Lens Holder with Air
Purge
- Robust Stainless Steel Optic
Head Holder provides 21 mm Height
Adjustment, +/- 45° Vertical Tilt,
and 360° Horizontal Rotation
- Utilizes Flexible Armored Fiber
Optic Leads
- Ambient temperature
continuous rating of 600°C
(1112°F)
- Highly suited to Hot Bar &
Rod Mills, Hot Rail Mills, Hot
Strip Mills, Hot Plate Mills,
Billet Casters, Slab Casters,
Bloom Casters, Tube Mills,
Forging Plants, and for general
tracking or detection of hot
product.)
|
|
|

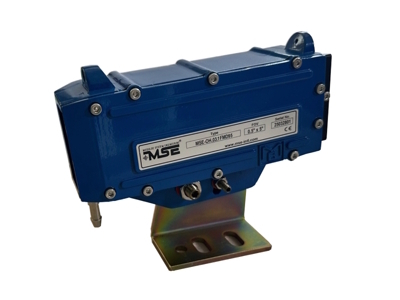

MSE-OH.03.XX.Y-FMD95 Remote Optic Head with
Rectangular Lenses and Optic Head Holder
- Engineered for mounting in high
ambient temperatures and very close
to the product line.
- Can be used in areas where with
heavy steam or water is present.
- Designed where high accuracy
is required or the product
deviates about the center line.
- Lens Options: ½° x 25°, ½° x
15°, or ½° x 5° F.O.V. Slit
Rectangular Lens
- Robust cast aluminum housing
rated IP66
- Water/Air Cooling with
separate air purge facility.
- Optional unique air purge &
air cooling facility.
- Robust Cadmium Plated Steel
Optic Head Holder provides 12 mm
Horizontal Adjustment and +/-
22.5°
Vertical Tilt
- Utilizes Linearized Flexible
Armored Fiber Optic Leads
- Ambient temperature Ambient
temperature rating of 90°C
(1112°F)without cooling, 120°C
(1112°F) with air cooling and
200°C (1112°F)with water
cooling or vortex cooled air.
- Highly suited to Hot Bar &
Rod Mills, Hot Rail Mills, Hot
Strip Mills, Hot Plate Mills,
Tube Mills, and for general
tracking or detection of hot
product.)
|
|
|

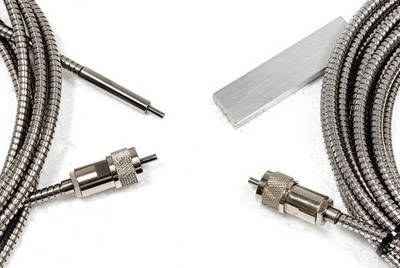

Fiber Optic
Leads
- Armored Stainless Steel Outer
Sheath
- Available in two formats:
- OL-XXFMD95 Rated for 400°C
Ambient temperature for use with
Spot Lenses
- OL-Flat-Out-XXFMD95 Rated
for 300°C Ambient temperature
for use with MSE-OH.03.X.FMD95-X
Rectangular Lenses.
- Standard Lengths: 2, 3, 4, 5, 6,
8, 10 and 12 Meters.
- Suitable for use with old
Moduloc device types: MD9100,
MD95100, MD9207, and MD4000 Sensors
and Lenses
|
|
|
